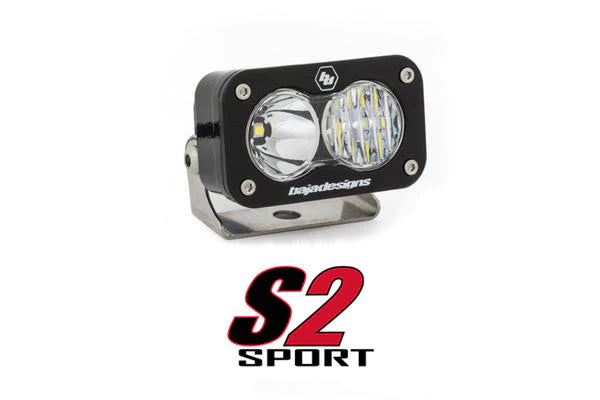

BAJA DESIGNS - S2 SPORTS

Aux LED S2 Sports

The S2 Sport features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S2 Sport is ideal as a fog, cornering, rack, or reverse light and much more. A compact and powerful light, featuring quality that is second to none.

When bought as a pair it includes a simple wiring harness included. A basic on off switch ( not handlebar switch). Does not include a relay, diode etc.

Baja Designs Features:

• uService® – Replaceable Lenses And Optics

• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (Per Light):

• Lumens: 1,581 Utilizing 2 LEDs
• Wattage/Amps: 12W / .9A
• Dimensions: 74.4mm (2.93") x 44.7mm (1.76") x 42.6mm (1.68")
• Weight: 226.7g
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 2743mm (9ft) & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

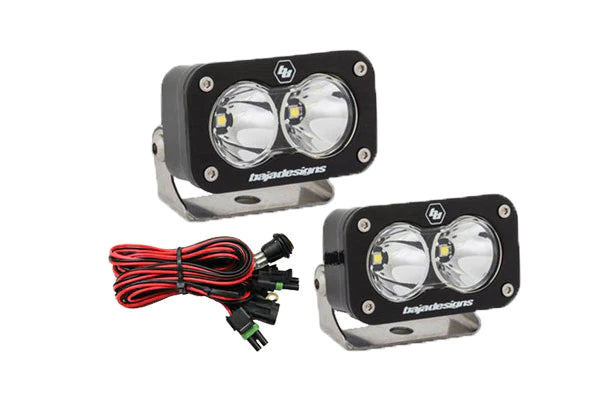

Contains:

• (2) LED Lights
• LED Holding Brackets (Not Engine bar clamps)
• Basic Wiring Harness ( Rel)

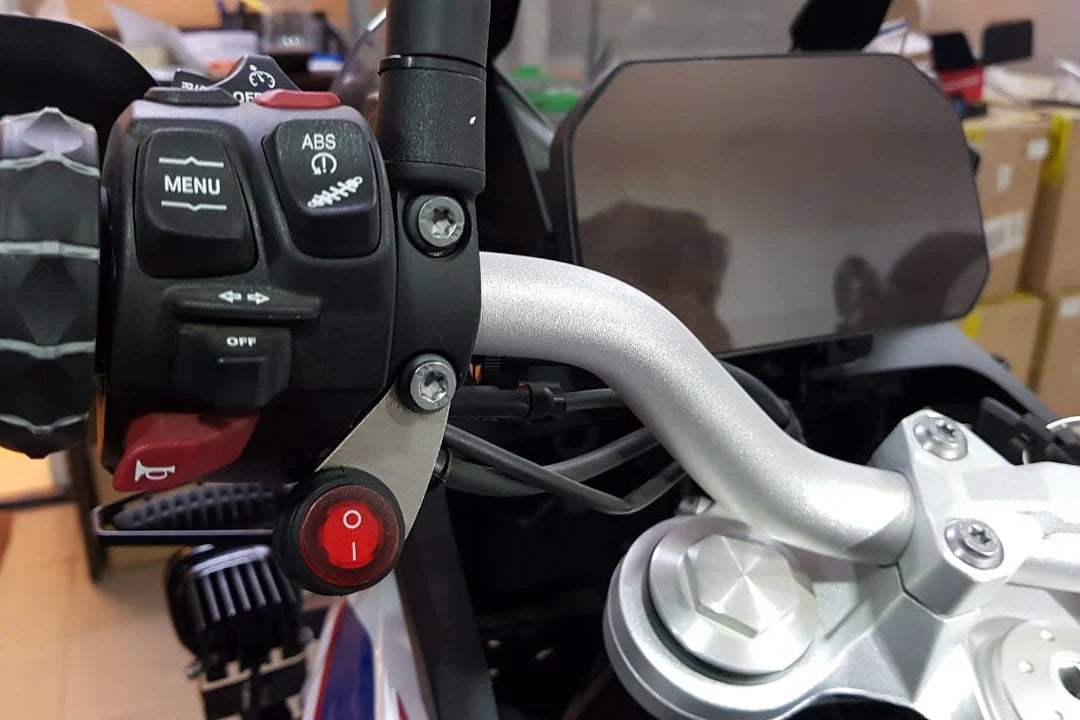

• Wiring harness has an inbuilt on/off switch ( With a SS bracket for installation - Refer image)

Optional / Additional Upgrade available on request

1. Longer Wiring Harness with Connectors and Push Button Switch Included
2. Brackets 25mm (1") or  22.2mm (7/8th Inch) ( engine Bar clamps) Included

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Available on Order:-
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Flood: Excellent work light or “scene light” with an extremely smooth 60° circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)

DATA SHEET
