BAJA DESIGNS-SQUADRON SPORTS

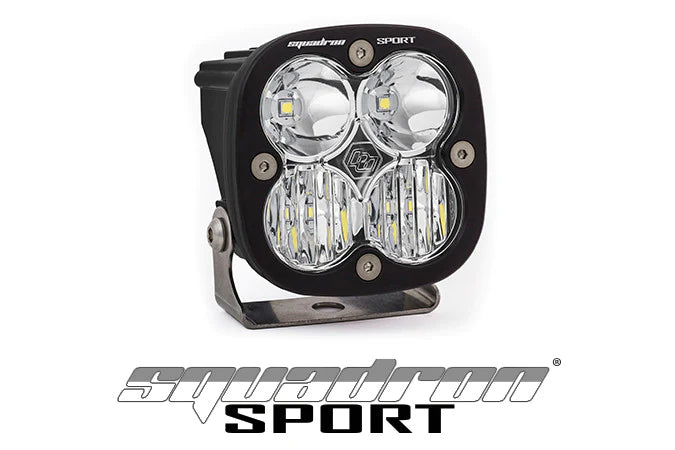

Squadron Sport Pair 6324 Lumens Utilising 4 Cree XP-G2 LEDs

• Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies.
• The Squadron® Sport utilises 4 CREE XP-G2 LEDs
• 3,162 lumens per light
• 26 watts per light, making it ideal for near field, side/backup and scene lighting application.

Utilising 4 powerful Cree LEDs combined with its unique styling and lightweight, set this kit apart from any other. If you’re looking for the ultimate addition to your Adventure Bike, look no further.

Baja Designs Features:
Limited Lifetime Warranty
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Colour

Pattern:

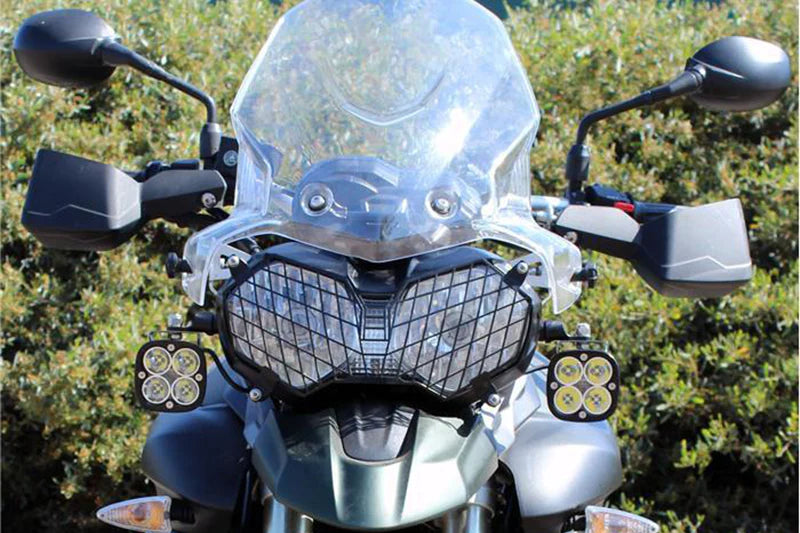

• Zone - Driving Combo: This zone is your primary driving light.  These lights are mounted towards the middle of the front of the vehicle to avoid glare off of the hood/fender or from dust and fog.

Specifications (per light):

• Lumens: 3,162 Utilizing 4 Cree XP-G2 LEDs
• Wattage/Amps: 26W / 2A
• Dimensions: 77.9mm x 70.3mm x 77.9mm (3.07" x 2.77" x 3.07")
• Weight: 340g
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Over voltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

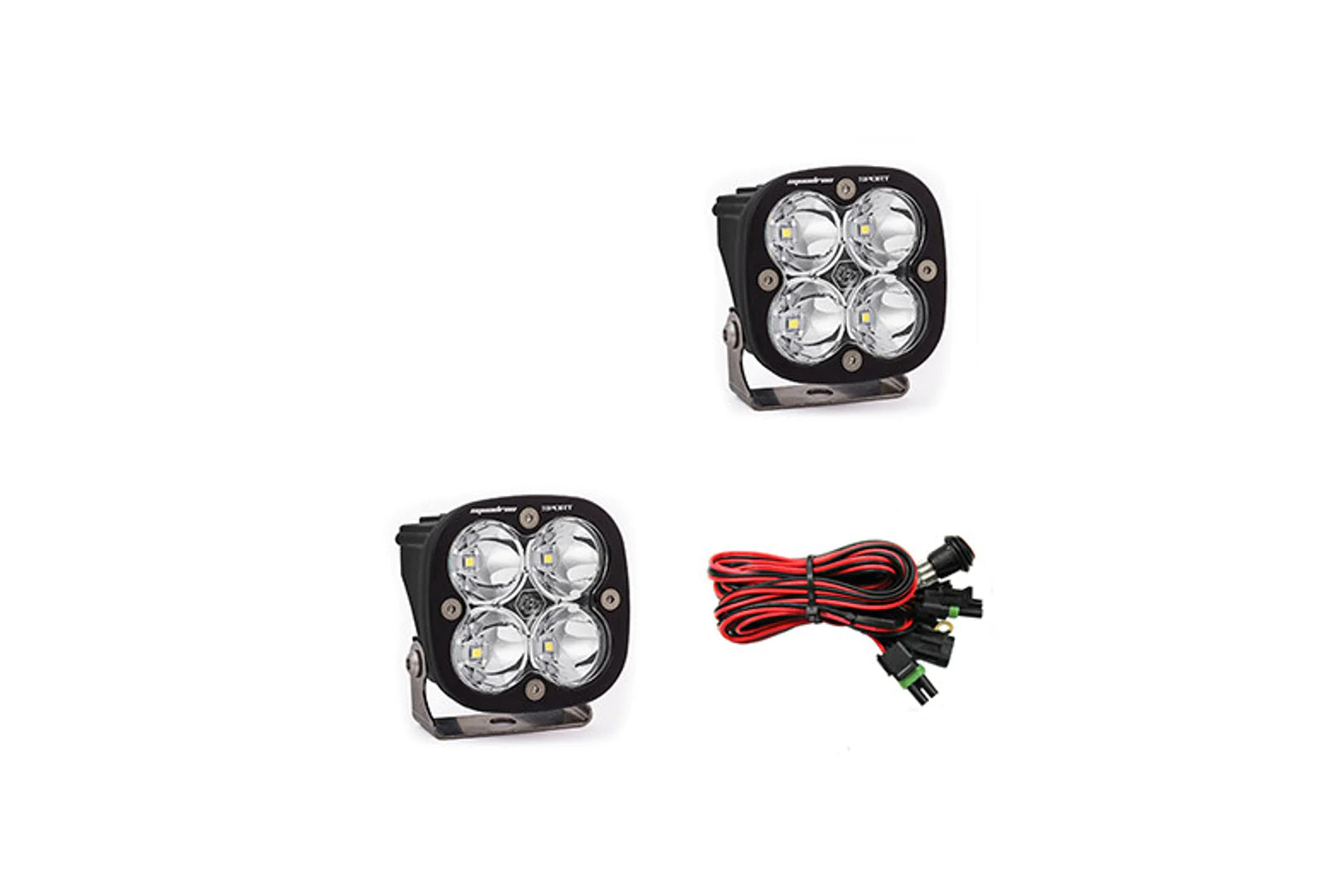

Contains:

• (2) LED Lights
• Basic Wiring Harness is given separately

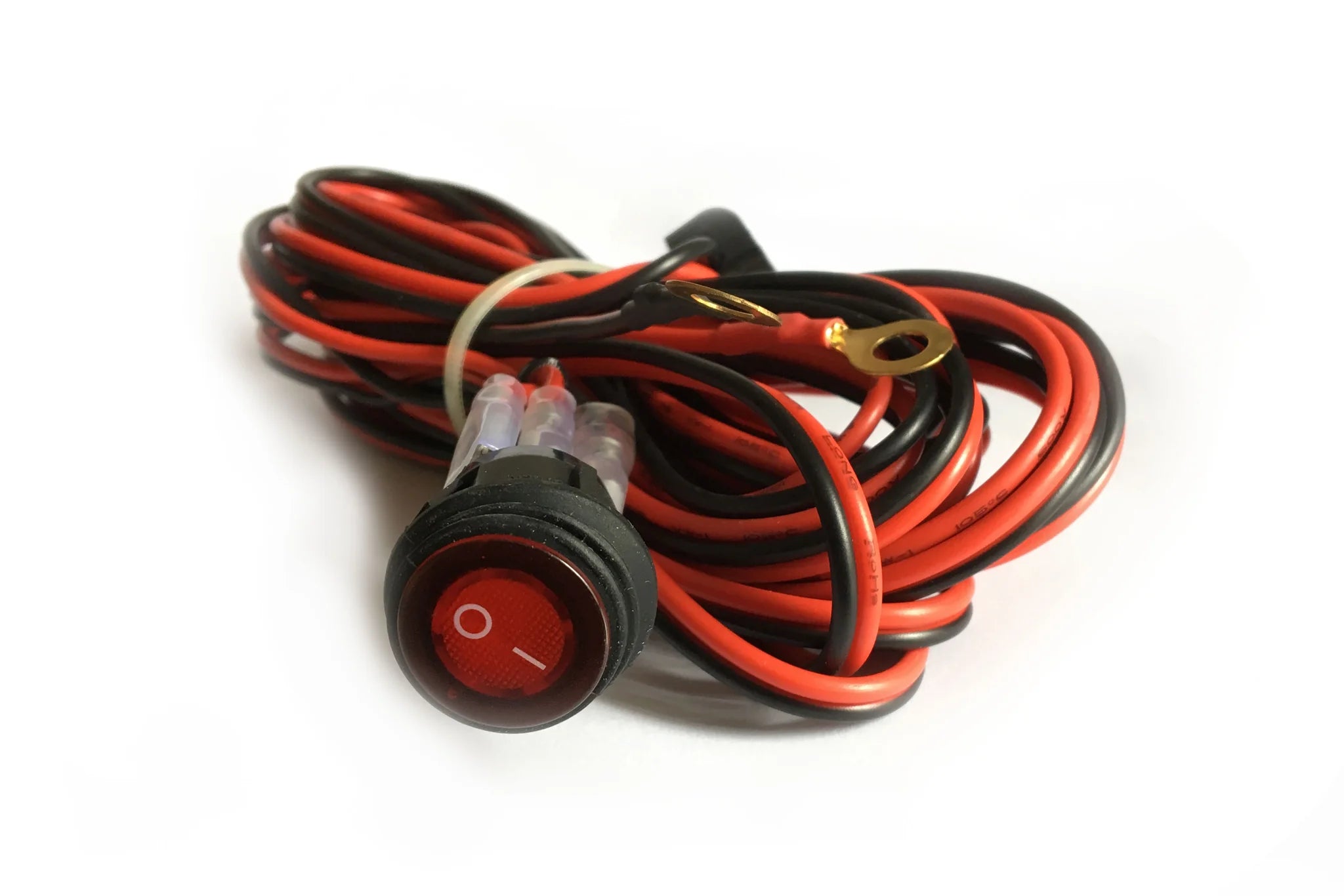

• Wiring harness has an inbuilt on/off switch - See image attached

Optional / Additional Upgrade available on request

1. Longer Wiring Harness with Connectors and Push Button Switch
