BMW R1250GSA PROTECTION - REINFORCEMENT BAR (OEM ENGINE BAR) - WUNDERLICH

Fitment and compatibility :

• BMW R1250 GSA (2019-2023)

41873-300 (OEM BAR TO FRAME) DOES NOT WORK WITH R1250GS TANK GUARD EXTENSION 41873-200.

HENCE IF YOU HAVE THE TANK GUARD EXTENSION BUY 41873-210 (OEM BAR TO TANK GUARD REINFORCEMENT)

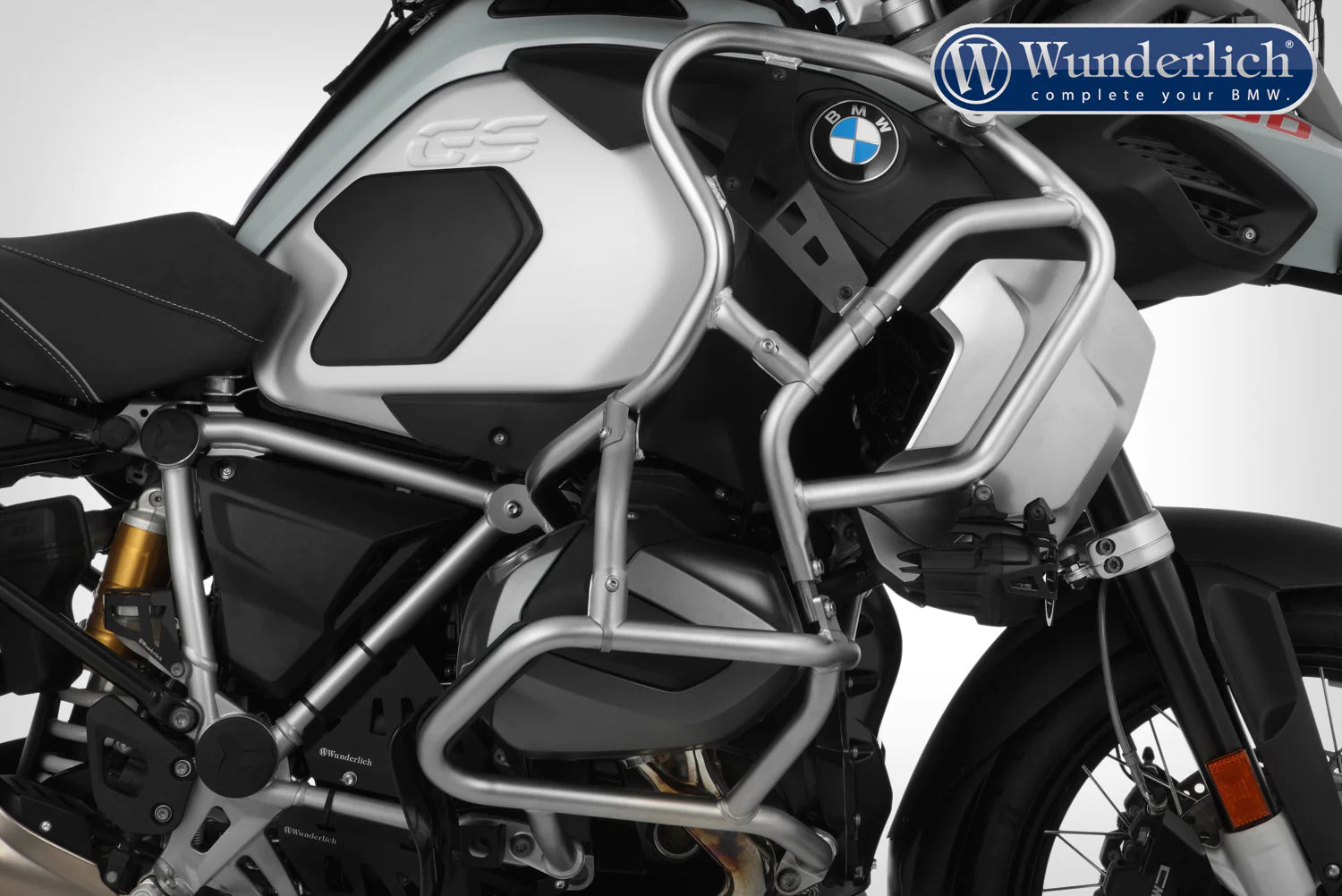

BMW R 1250 GSA Protection - Reinforcement Bar:

The rear, free end of the original engine protection bar for the Adventure has no additional support against the frame. It thus represents the Achilles heel of the engine protection bar. In the event of a crash or a fall it tends to give way because the forces are not immediately transferred to the frame. This brings the threat of damage to the valve cover.

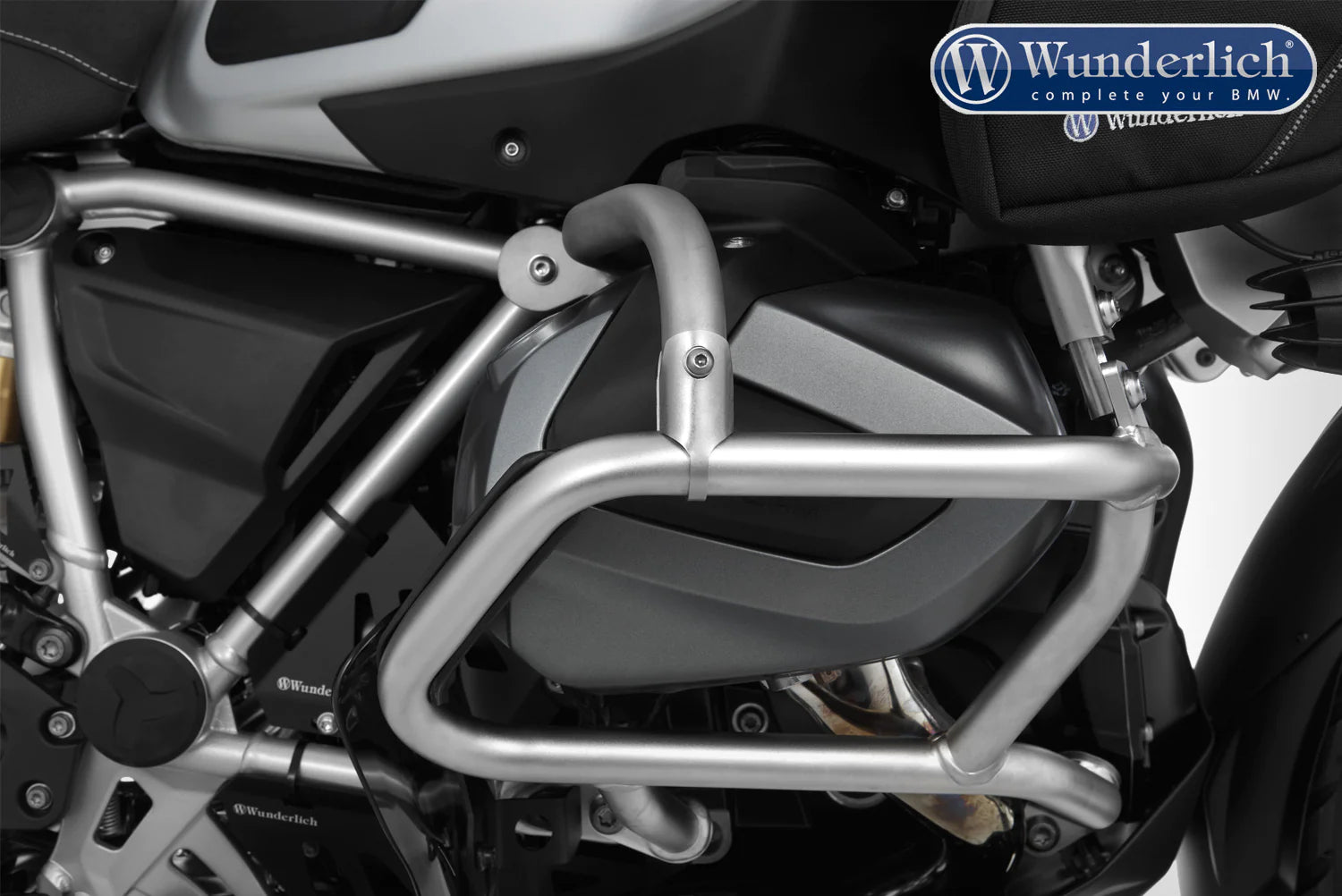

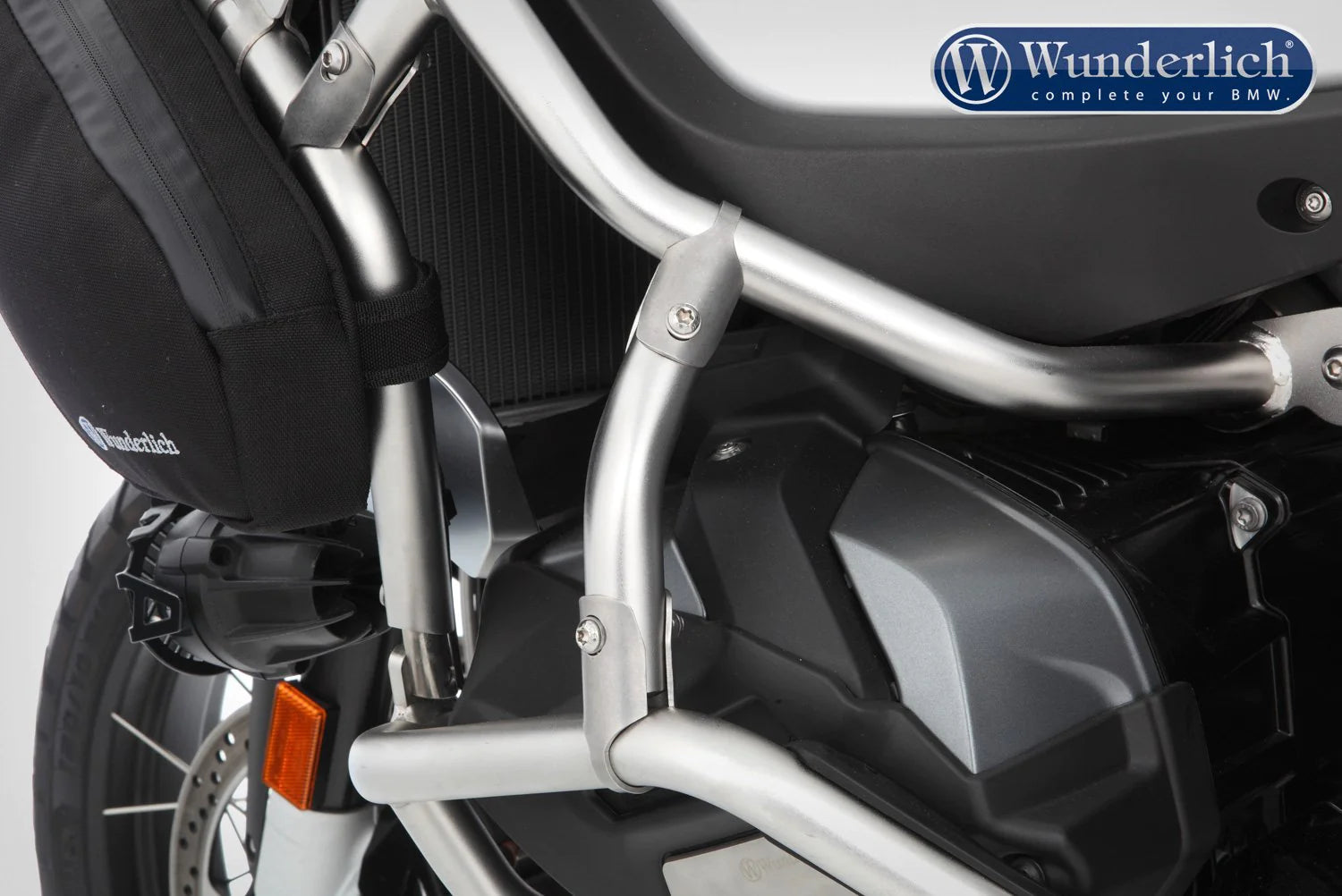

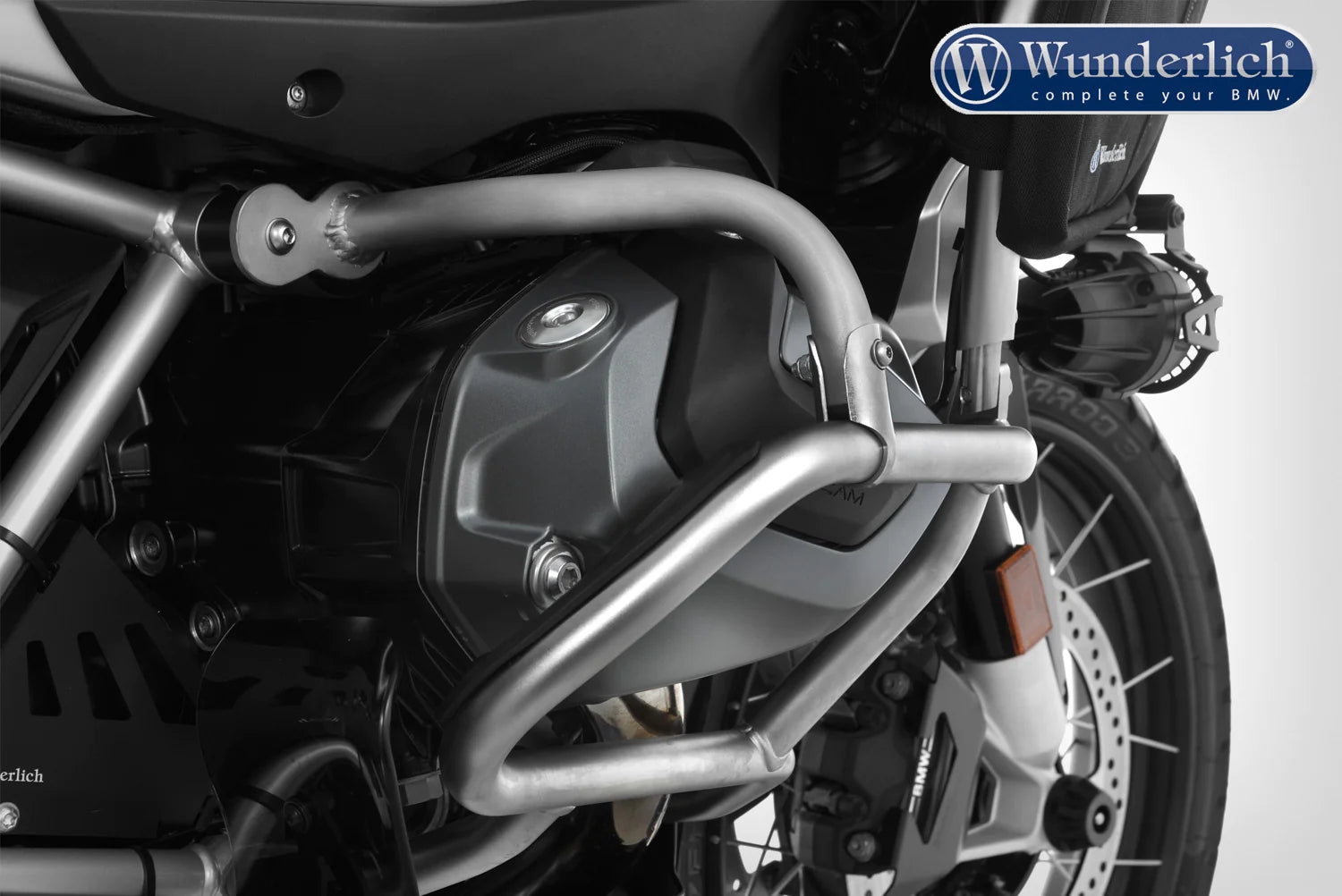

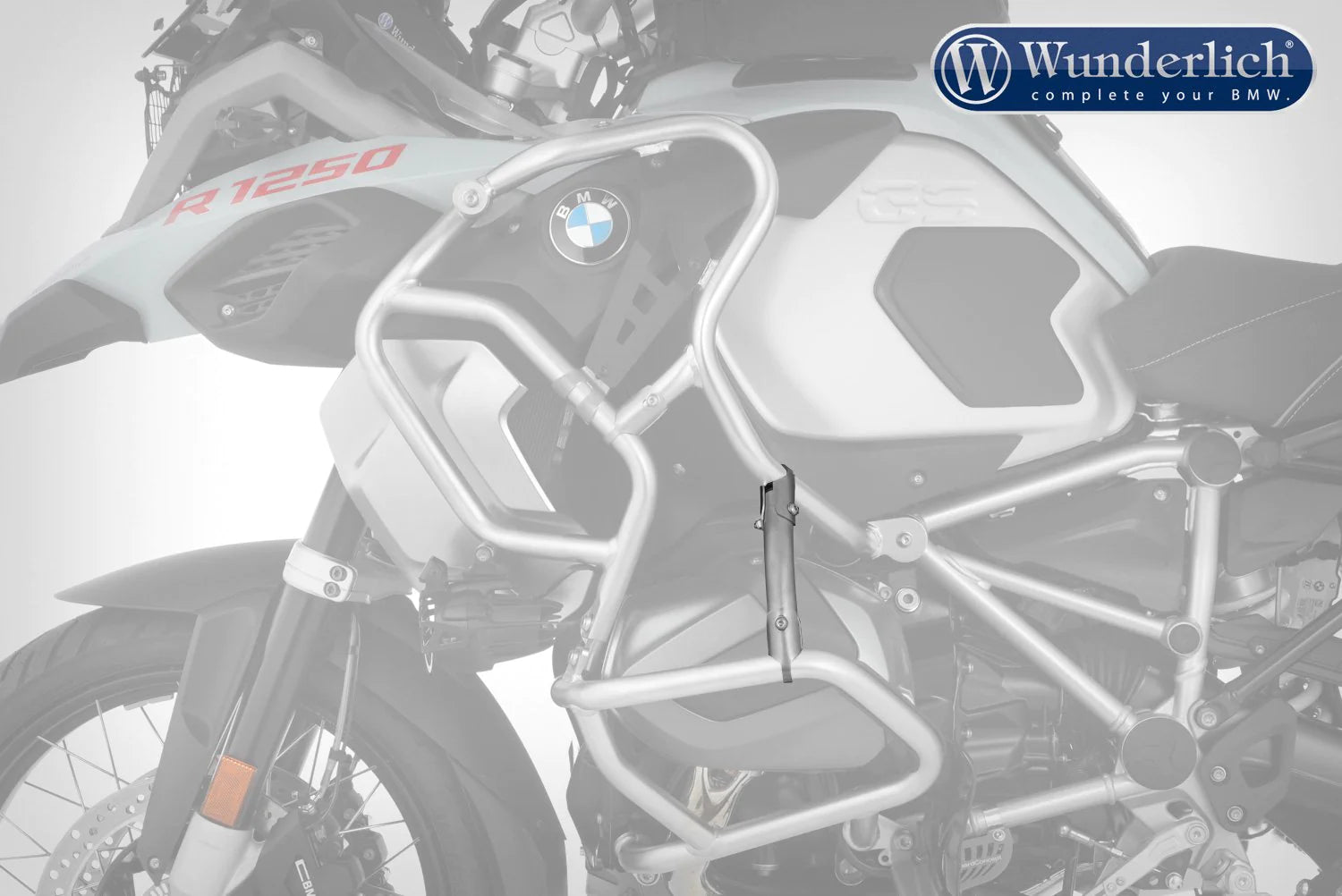

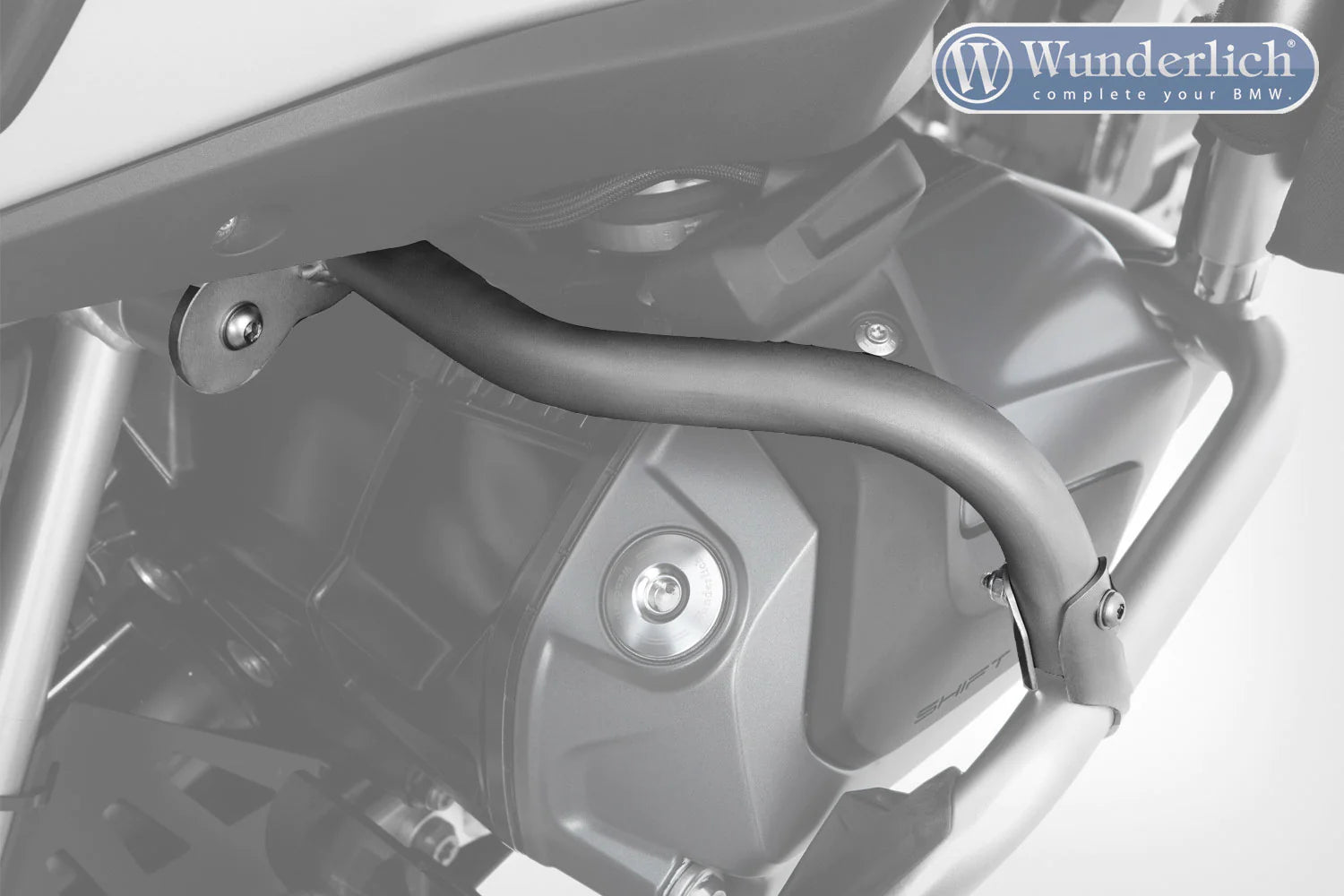

Our reinforcement bar reliably resolves this problem. It connects the rear, free end of the engine protection bar to the frame. This means the effective forces are also transferred via the bar to the suitable points on the frame structure. This measure therefore prevents the engine protection bar giving way and reduces the risk of damage to the valve cover. The construction of the reinforcement bar is designed so that its curving form ensures the dissipation of load spikes.

Precisely formed on CNC pipe bending machines, cleanly welded. The reinforcement bar integrates into the design of the original engine protection bar.

Increases passive safety for rider and machine.

Function :

• Reliable protection in the worst case scenario
• Distributes the effective forces over an additional attachment point
• Dissipates load spikes

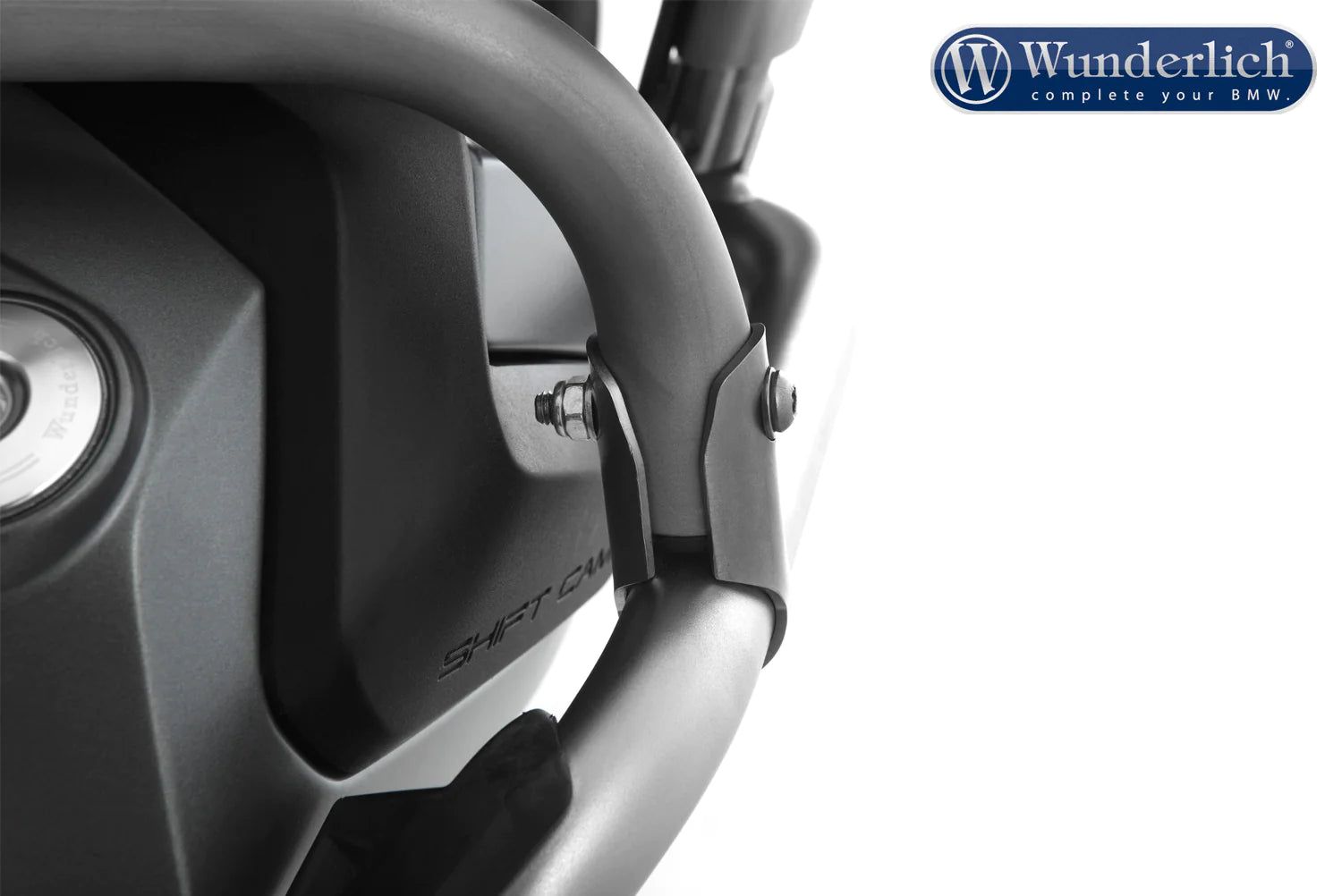

• Quick and easy to install thanks to the smart connector to the original crash bar
• Perfect fit
• Set for right and left side
• Increases passive safety for machine and rider

Technical data :

• Stainless steel, glass bead blasted and electro polished
• Pipe diameter 25mm

MANUFACTURER: WUNDERLICH GmbH | COUNTRY OF IMPORT: GERMANY

ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY.
