DENALI Plug-n-Play CANsmart Controller for BMW R1200 LC & R1250 Series – Gen II

DENALI Plug-n-Play CANsmart Controller for BMW R1200 LC & R1250 Series – Gen II

Harness the flexibility and intelligence of your BMW motorcycle’s CANbus electrical system

VEHICLE COMPATIBILITY

BMW R 1200 GS LC 2013 - 2016
BMW R 1200 GS LC 2017 - 2019
BMW R 1200 GS LC Rallye 2017 - 2019
BMW R 1200 GSA LC 2013 - 2019
BMW R 1200 R 2017 - 2019
BMW R 1200 RS 2017 - 2019
BMW R 1200 RT 2017 - 2019
BMW R 1250 GS 2019 - 2023
BMW R 1250 GSA 2019 - 2023
BMW R 1250 R 2019 - 2023
BMW R 1250 RS 2019 - 2021
BMW R 1250 RT 2019 - 2021

Product Description

Harness the flexibility and intelligence of your BMW motorcycle’s CANbus electrical system to make installation of accessories drastically easier with the DENALI CANsmart™ Controller Gen II. The CANsmart provides for plug-and-play installation of up to four electrical accessories, all controlled through your BMW’s existing handlebar switches including the rotary “WonderWheel” multi controller. No more “tacked on” switches or confounding wire routing. In addition, because the CANsmart controls the power distribution functions, there’s no need to wire in bulky relays to control your accessories.

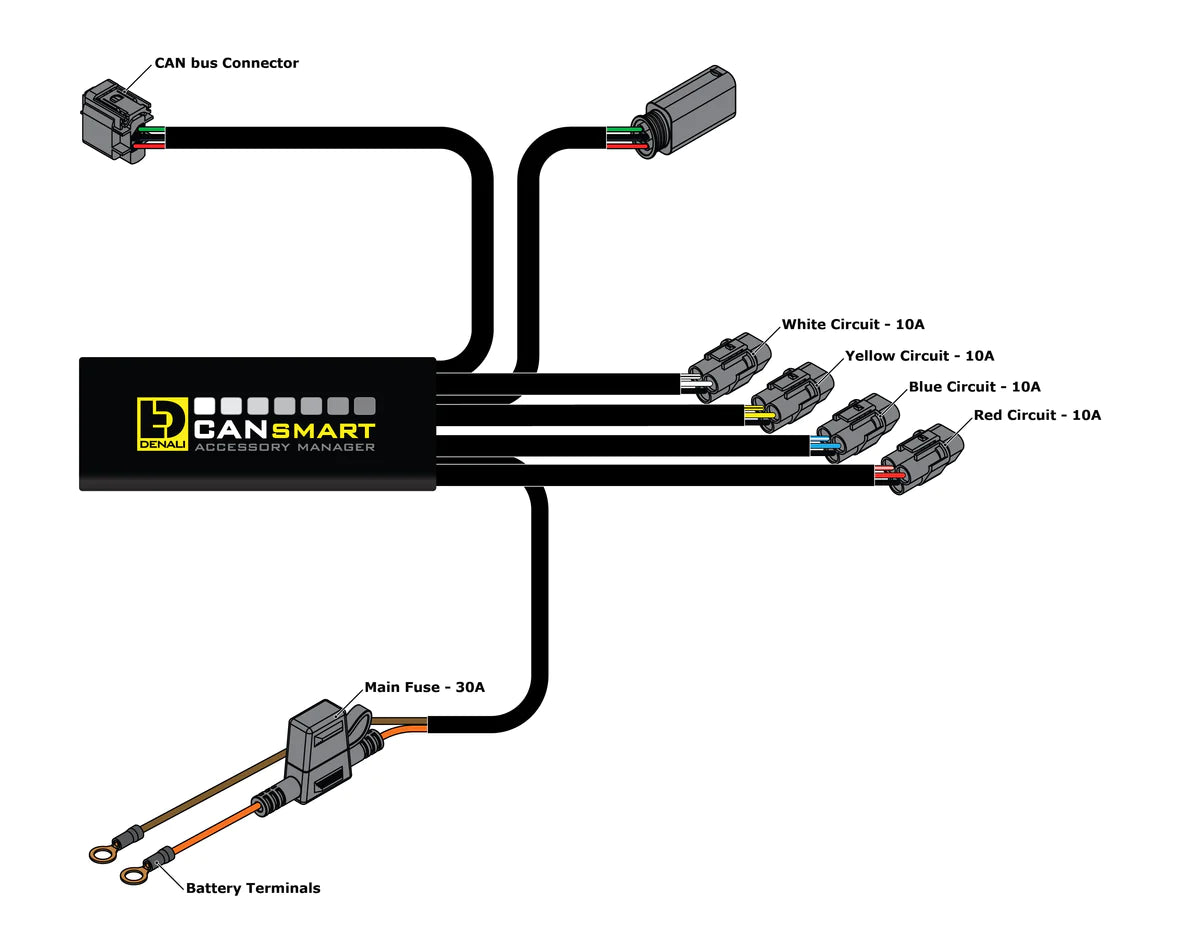

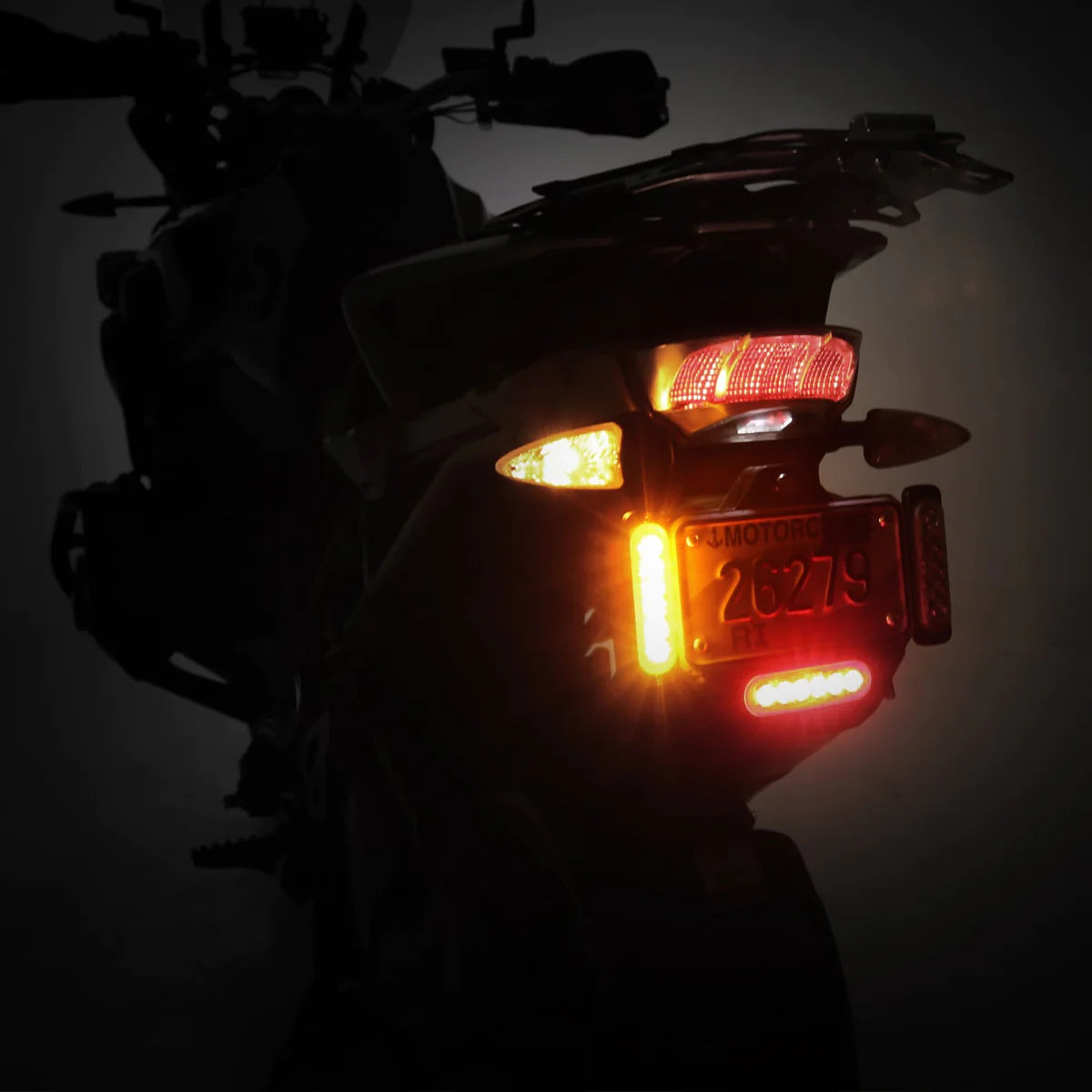

The CANsmart’s four circuits are preprogrammed to connect and independently control two sets of DENALI lights, a SoundBomb horn, and our B6 auxiliary brake light.

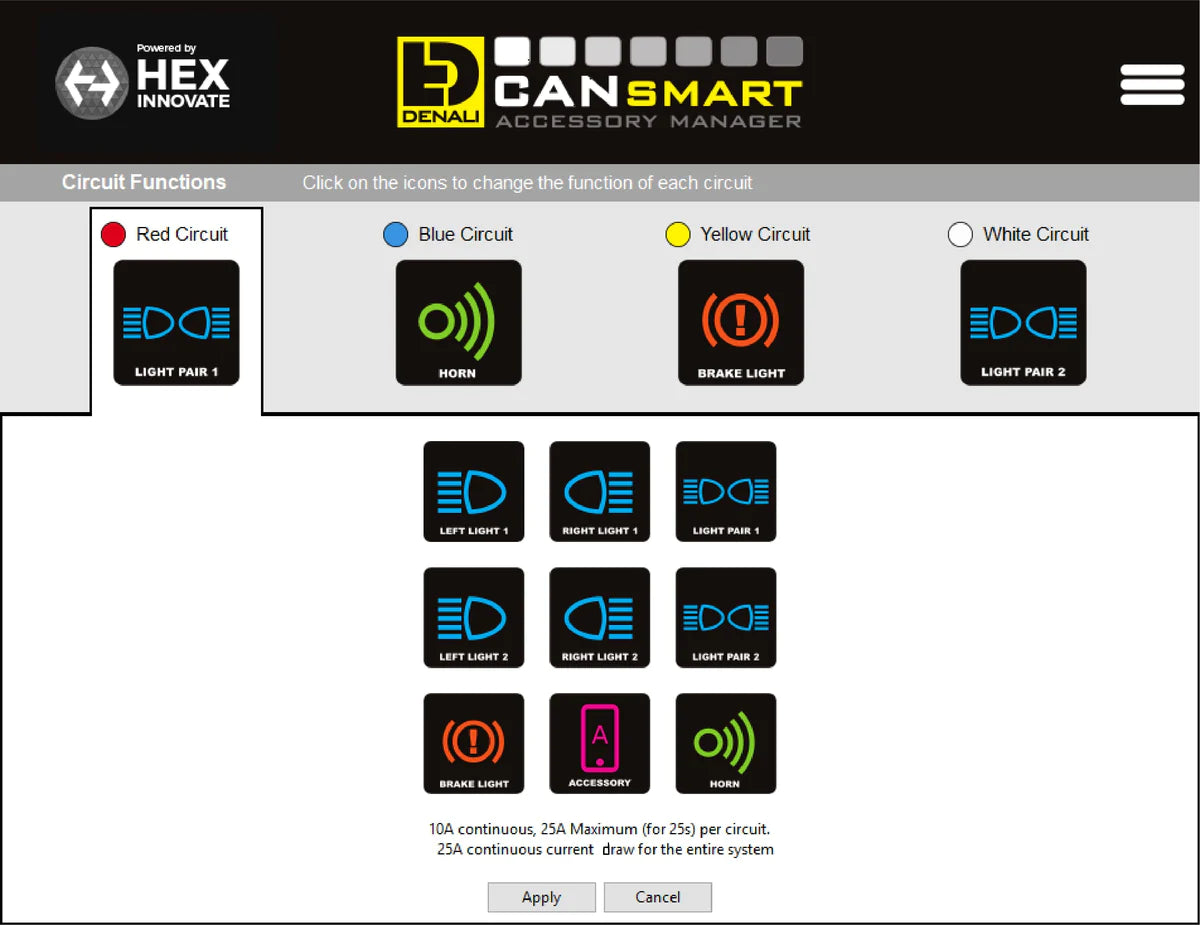

Unlike the Gen I CANSmart, all four circuits of the Gen II can provide a full 10 amps of continuous power and each circuit can be configured to run any accessory type. The maximum power draw for the whole unit remains at 30 amps continuous. The Gen II also features two new auxiliary light settings. You can now modulate your auxiliary lights for added conspicuity, and set your left and right side lights to independently cancel when you activate your corresponding turn signal.

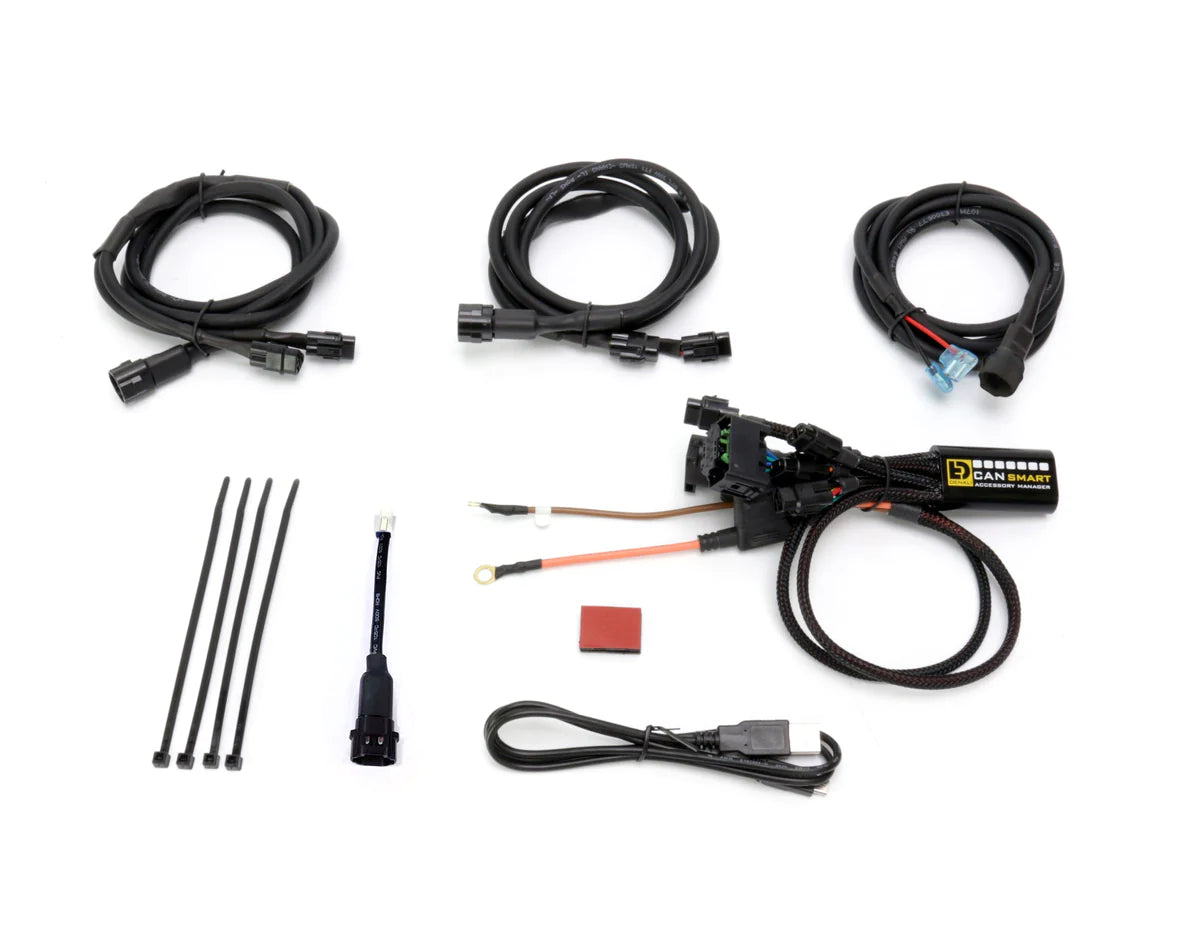

What’s in the box?

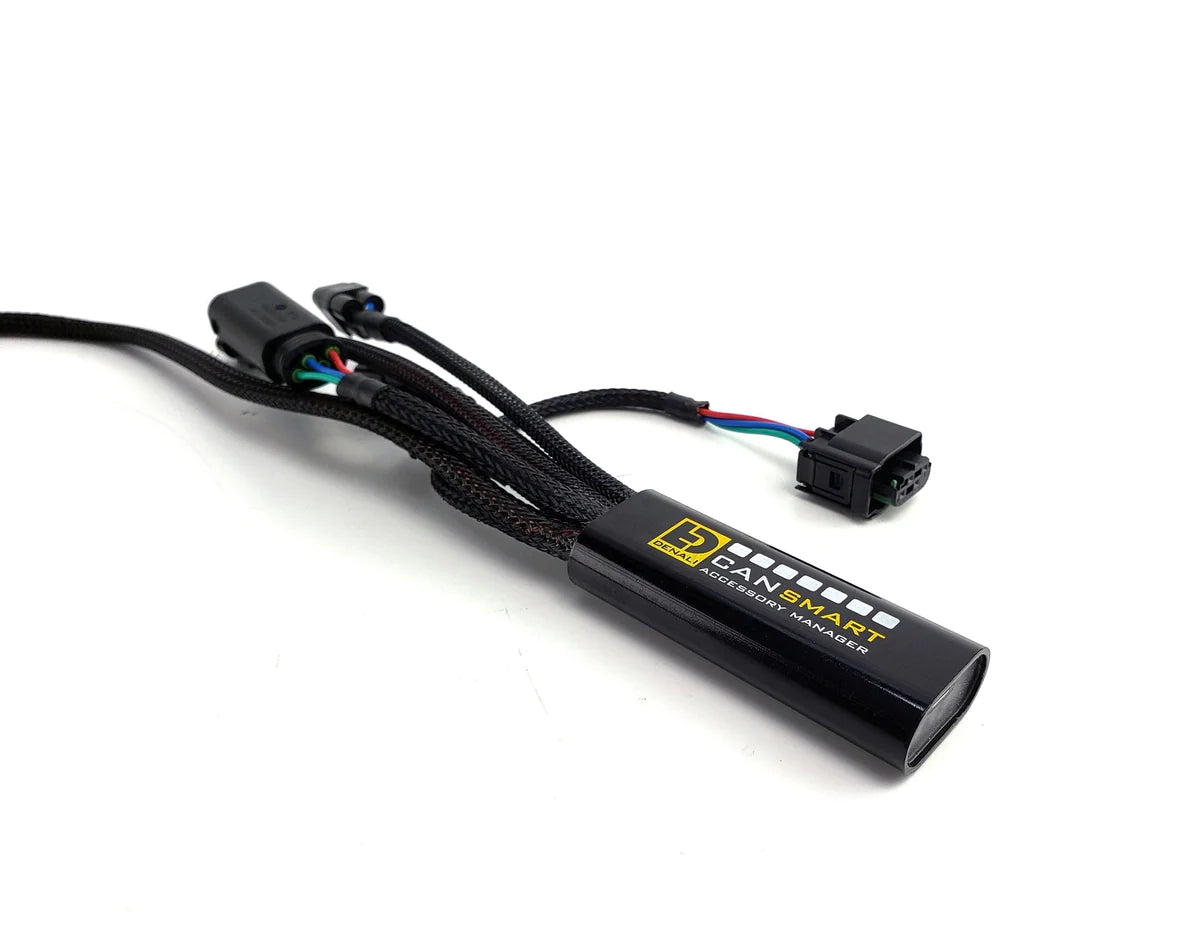

CANsmart Controller Gen II
(2) 4ft light extension cables
5ft SoundBomb horn extension cable
Brake light pigtail
Zip-ties
Adhesive hook-and-loop fastener
Micro USB programing cable
