RAM SET - HANDLEBAR QUICK GRIP U-BOLT - XL

RAM MOUNT Set - XL Phone Mount with Handlebar U-Bolt Base:

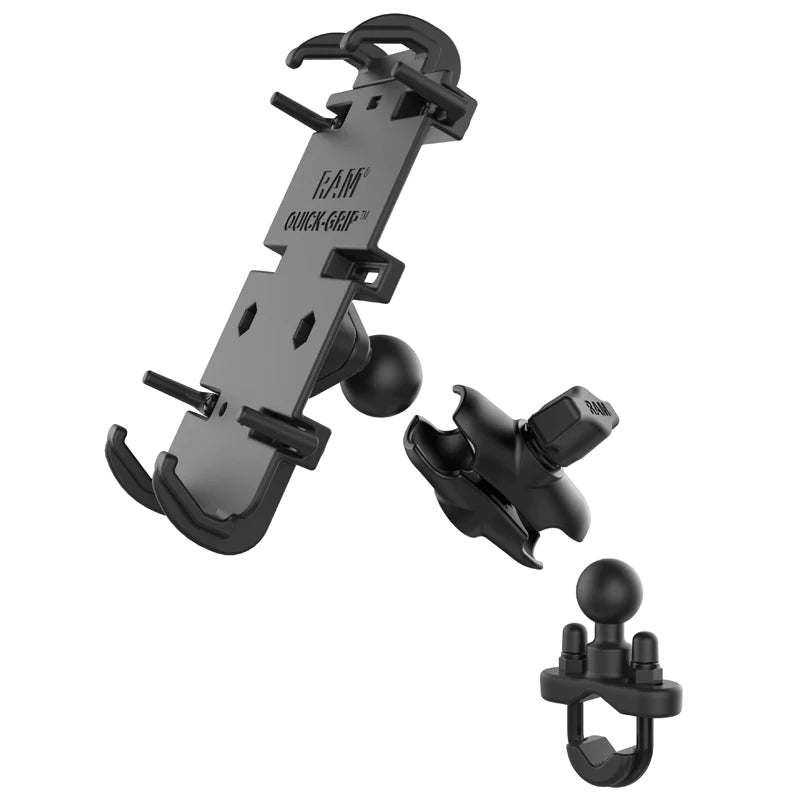

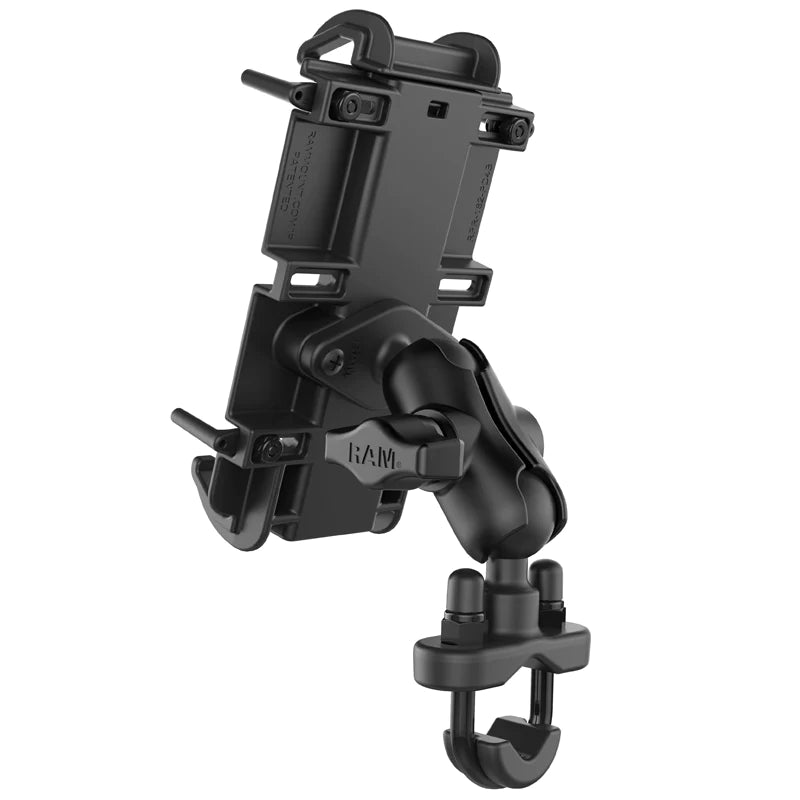

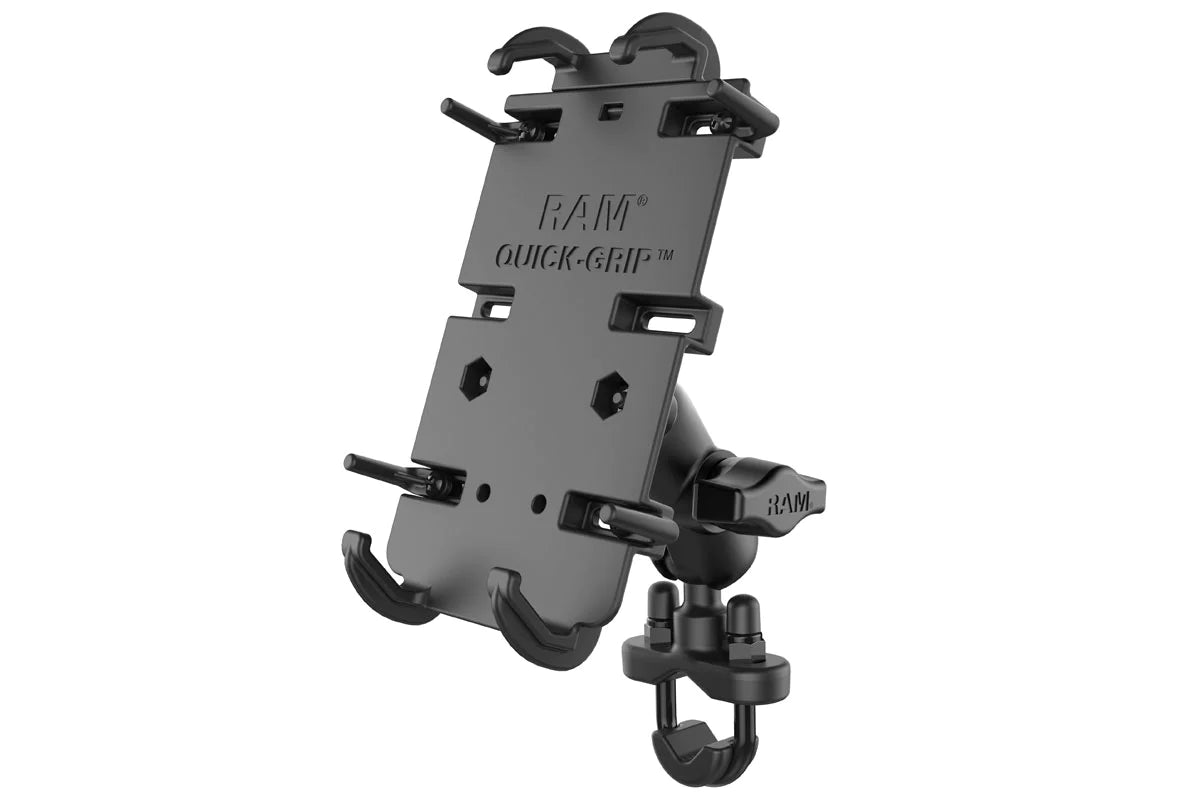

This version of the spring-loaded RAM^® Quick-Grip^™ holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM^® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from 12.7mm (.5”) to 31.7mm (1.25”) in diameter.

Features:

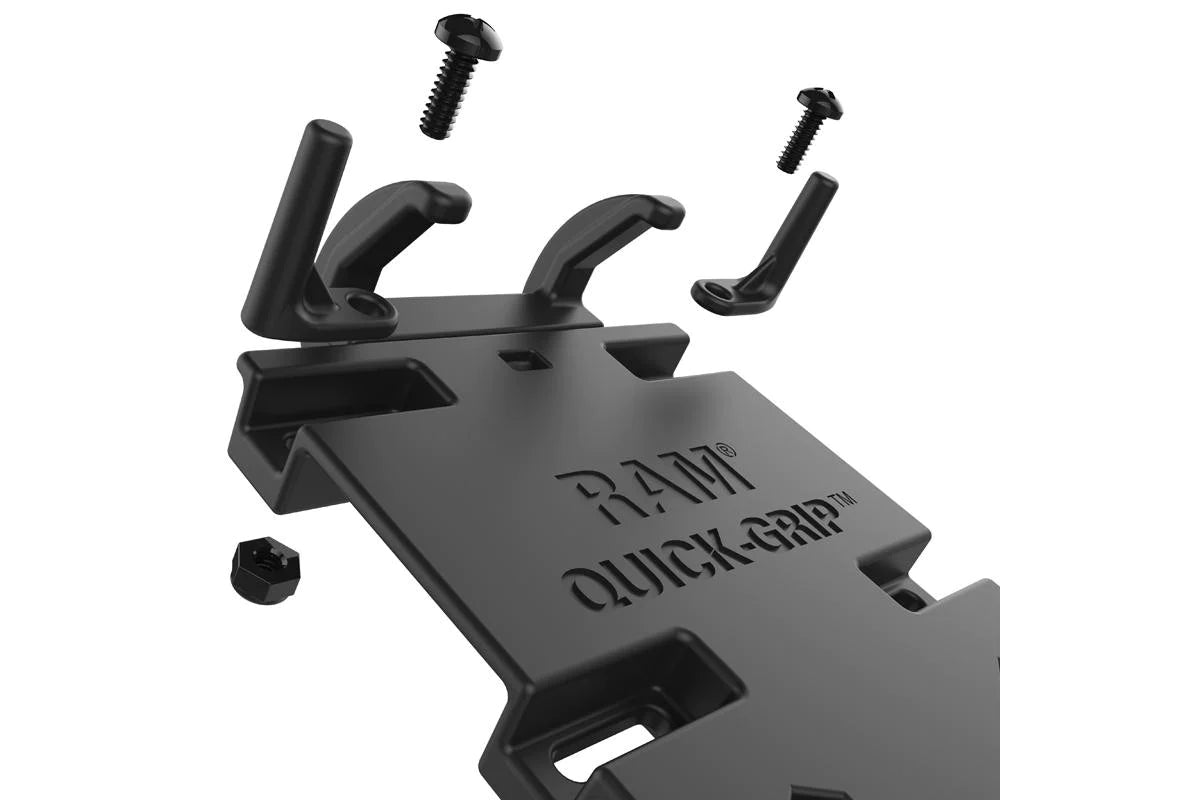

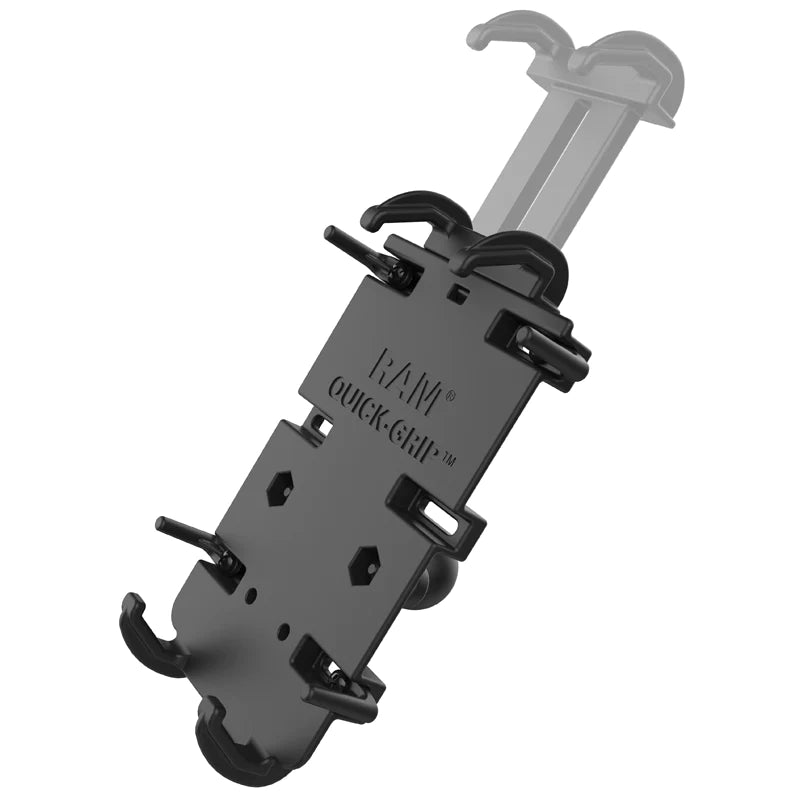

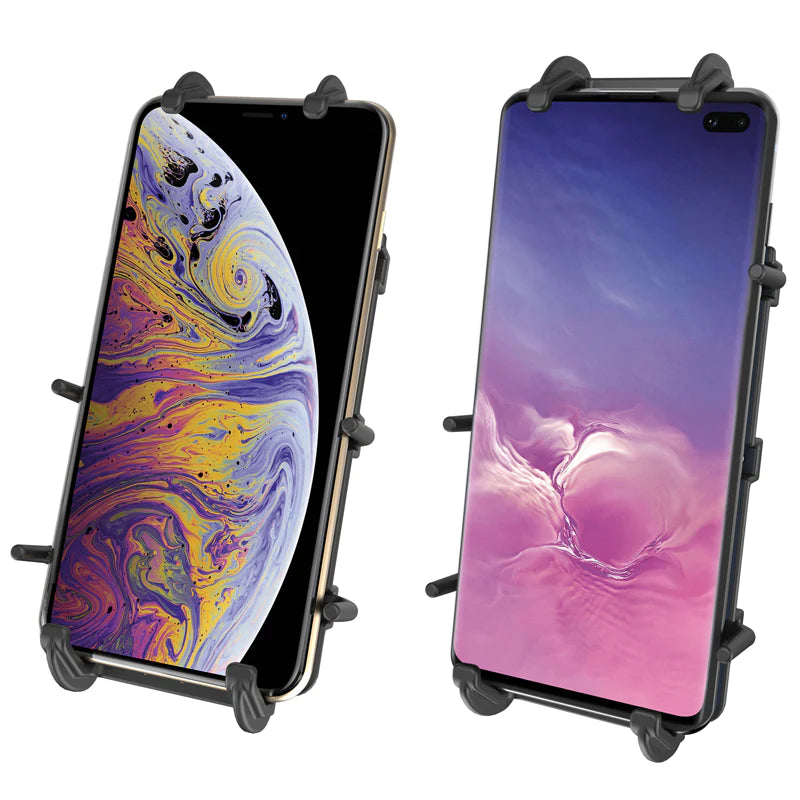

1. Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices;
2. Easily insert and remove your phone with one hand. B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
3. Made of powder-coated, Marine-grade aluminum and high-strength composite for durability and reliability.

HARDWARE INCLUDED

Assembly Hardware

• Qty- (1) : 6.3mm (1/4")-20 U-Bolt for 12.7mm (.5") - 25mm (1") Rails
• Qty- (1) : 6.3mm (1/4")-20 U-Bolt for 25mm (1")- 31.7mm (1.25") Rails
• Qty- (2) : 6.3mm (1/4")-20 Nylock Nuts
• Qty- (2) : Rubber Caps
• Qty- (1) : U-Bolt Spacer

HOLDER DIMENSIONS

• Height Range: 146mm (5.75") - 184mm (7.25")
• Width Range: 66.6mm (2.625") - 92mm (3.625")
• Max Depth: 18.2mm (0.72")

CLAMP RANGE

• 12.7mm (0.5") - 31.7mm (1.25") diameter

SOCKET-TO-SOCKET LENGTH

• 44.4mm (1.75")

BALL/SOCKET SIZE

• B Size 25mm (1")

MATERIALS

• Marine-grade aluminum
• High strength composite

Note:
The "U" in the part number reflects the product packaged in a poly bag.

MANUFACTURER : NATIONAL PRODUCTS INC | COUNTRY OF IMPORT : USA

Imported & Marketed by : PLUSGROW MERCHANTRY PVT LTD, T 31A, MIDC INDUSTRIAL AREA, HINGNA RD, NAGPUR 440016 MH

*** ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY.

WARRANTY INFO : ONE YEAR FROM DATE OF INVOICE.
